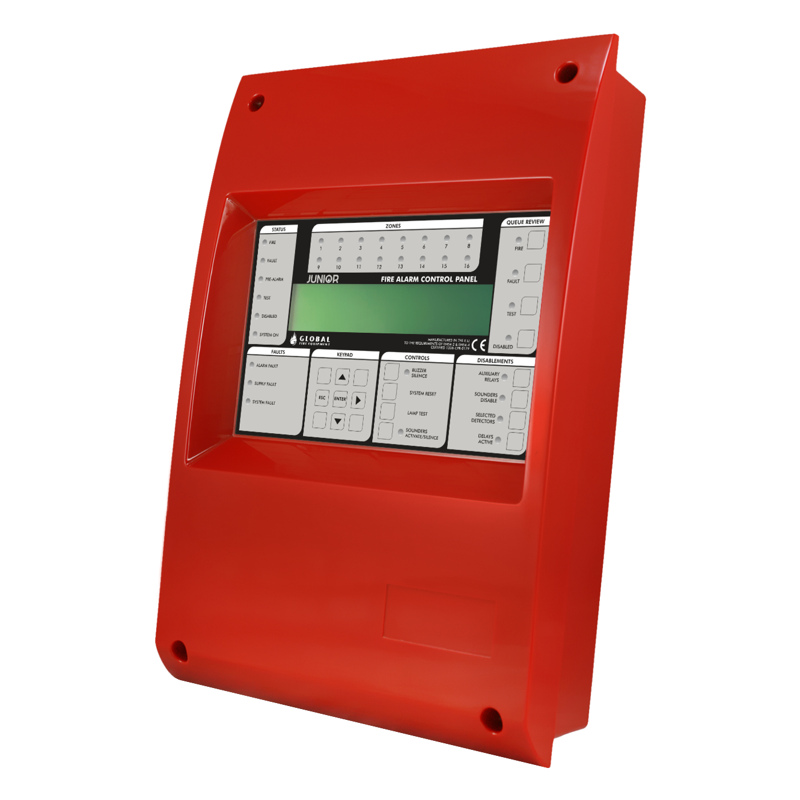

Global Fire Junior V4 Addressable 2 Loop Fire Alarm Control Panel - JNR-V4-2

Brand:
Global Fire Equipment
Model Number:
JNR-V4-2
Category:
Fire Alarm Systems > Control Panels > Addressable
Features Links
  • Single loop panel - Expandable to two Loops using JNR-V4-Card
  • Supports connection to Mini-repeaters via RS422/RS485, Fibre Optic or TCP/IP interfaces
  • 125 Device addresses per loop
  • 32 Individually programmable sounder addresses per Loop
  • 96 VULCAN 2 (addressable) ultra low current sounders or beacons per Loop. Only 64 of these units should be installed per loop when combined sounder beacons are being used. This number includes addressable, shadow, auxiliary and detector-sounder/ beacon versions of these units
  • 2 Fire output relays (change-over) and 1 Fault relay (normally closed)
  • 2 Conventional alarm outputs (individually programmable)
  • 384 Fully programmable zones
  • 512 Fully programmable sounder groups together with 512 Input/Output groups
  • Event log (rolling, 2000 entries)
  • Compatible with GFE's range of Analogue Addressable Devices
  • Backlit LCD display with 4 rows of 40 characters
  • PC Programming using Upload/Download GFE Connector Software
  • PC Graphics package ODYSSEY for alarm management and reporting (optional)
  • Multiple language support (menu selectable)
  • Integrated 16 zone LED fire zone indication
