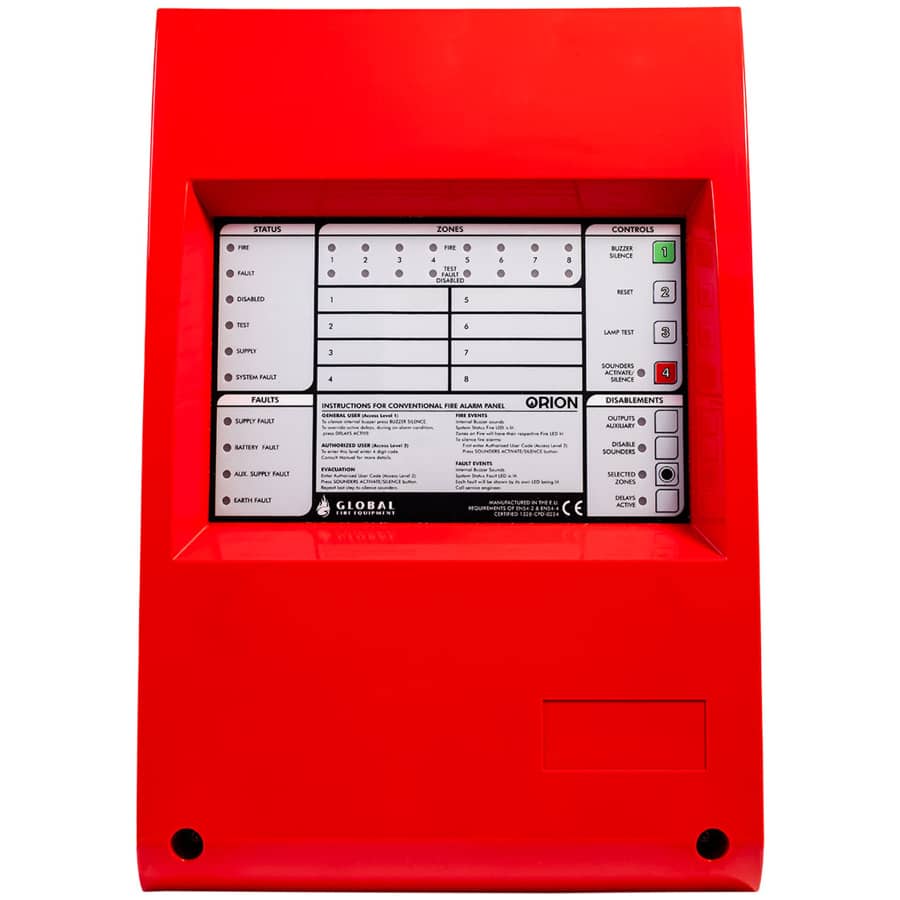

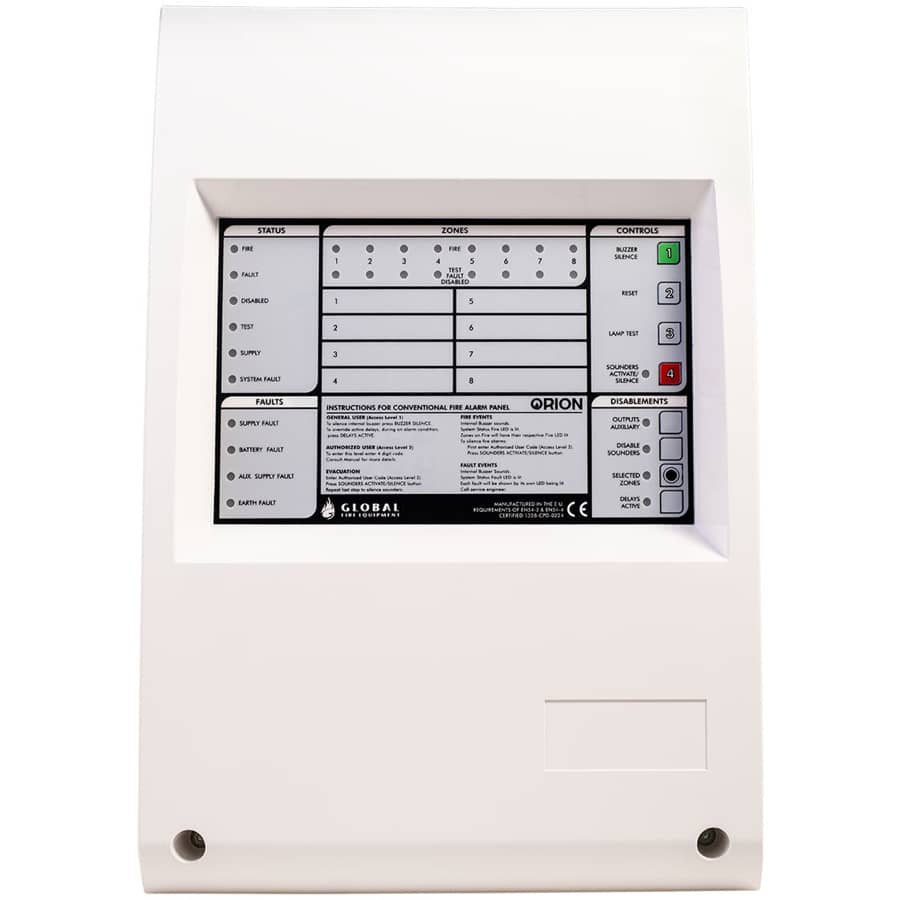

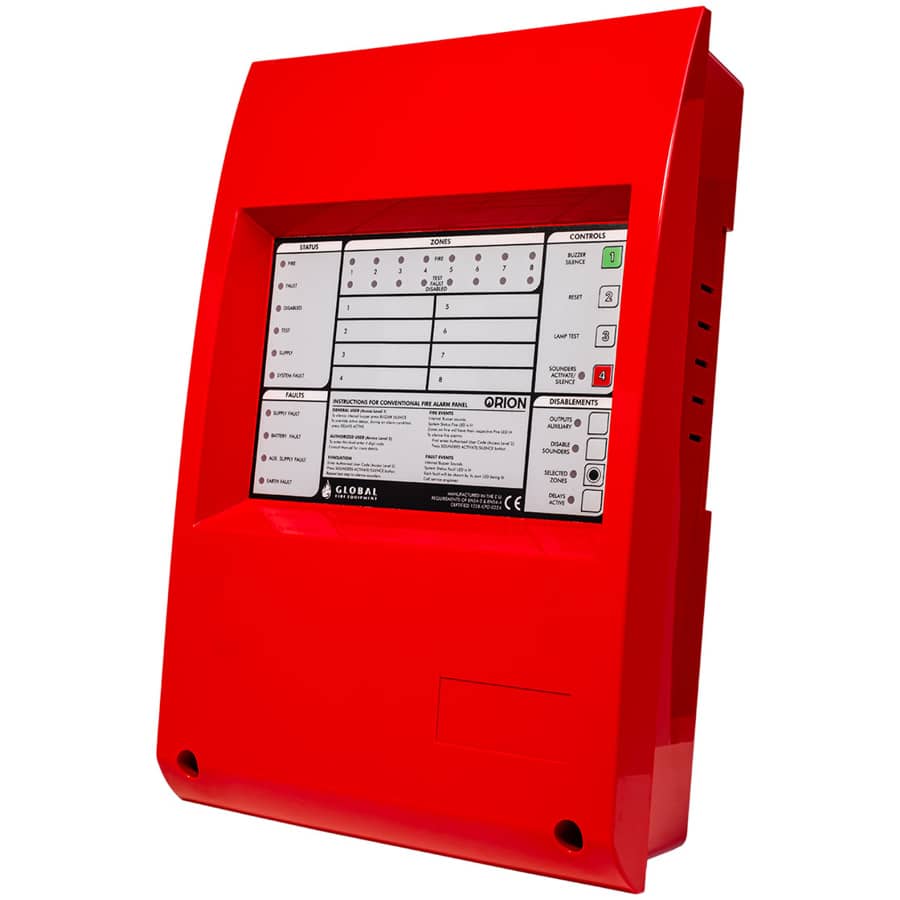

Global Fire ORION 8 Zone Conventional Fire Alarm Control Panel
Brand:
Global Fire Equipment
Model Number:
ORION 8
Category:
Fire Alarm Systems > Control Panels > Conventional
- 8 Zone non-expandable control panel
- Up to 32 conventional devices (smoke and/or heat detectors and call-points) per zone
- Active End of Line for Zone wiring monitoring (10uF/50V bipolar capacitor)
- Programmable non-latching zones (selectable for each zone)
- Programmable delay timer for sounder activation (maximum of 8m)
- Day/Night function
- Delayed operation (selectable for each zone)
- Zone Coincidence (programmable for adjacent zones)
- Two Access Levels (Selectable by fixed code entry)
- One man test capability
- Supervised auxiliary 24-volt supply output
- 2 Supervised/monitored sounder circuits
- 3 Remote Inputs (Class Change, Remote Reset and Day/Night Operation)
- 2 Relay outputs for fire and fault status indication (Unmonitored)
- Dedicated repeater panel and analogue loop interface
- Additional output via MPX-REL & MPX-SNDR modules
- EN54-2 and EN54-4 compliant
