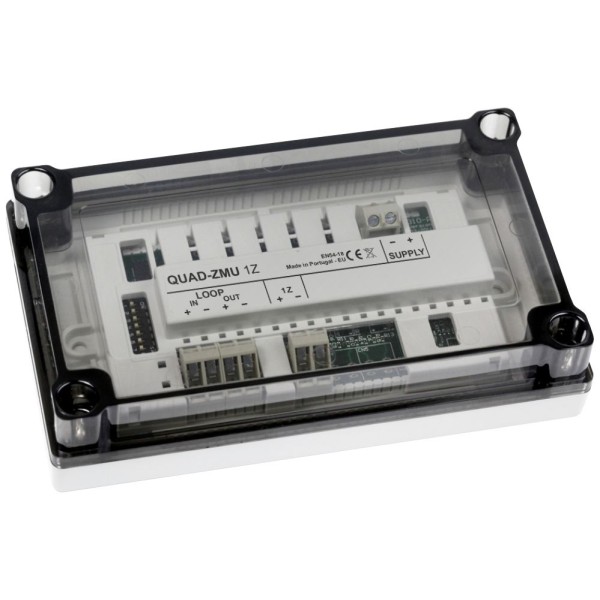

Global Fire QUAD ZMU Addressable 4 Conventional Zone Monitoring Unit
Brand:
Global Fire Equipment
Model Number:
QUAD ZMU V3 - 4 ZONES
Category:
Fire Alarm Systems > Modules > Addressable
- The QUAD-ZMU is a fully monitored addressable module which is used to connect up to four individually addressed zones. These zones consist of a number (limited by the current availability) of conventional detection devices that report the status to the Global Fire Addressable control panel via the detection loop.
- The module requires an external 24V DC power supply and a Green LED indicates supply presence. If that supply fails, a fault condition is reported at the control panel. The detection Zones and their supply voltage are optically isolated from the addressable detection loop, which allows the use of a local power supply.
- Active End of Line Monitoring. Compliance with Standard BS5839 Detector Removal when Schottky diodes are added to detector bases. The status of each zone is indicated by two LEDs. A Red LED signals Fire, Yellow indicates Fault on that zone. The normal state is indicated by neither LEDs being illuminated.
- Each Zone can be programmed to reply as a Zone Monitor, Flame Detector, Beam Detector, Aspirating Module or Linear Heat Device for better discrimination of Alarm status source.
- Each QUAD-ZMU module will take up to four consecutive addresses on the loop.
